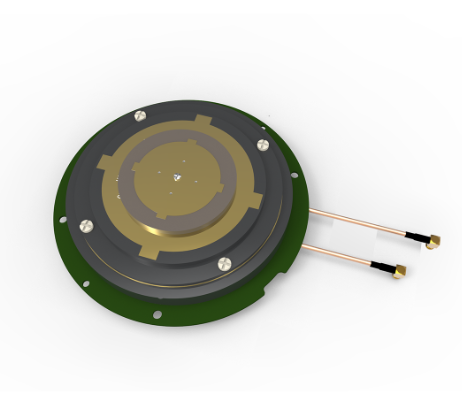

GA8112 high-precision measurement antenna can receive GPS L1 / L2 / L5, BDS
B1 / B2 / B3, GLONASS L1 / L2, and GALILEO E1 / E2 / E5a / E5b frequencies have good
low-elevation gain, wide-angle circular polarization, and stable phase center. It is
applicable to the field of multi-system and high-precision surveying and mapping, and is
widely used in geodetic surveying, road construction, marine surveying, and terminal
container operations.
GA8112 antenna part adopts a multi-feedpoint design scheme to ensure the coincidence
of the phase center and the geometric center, and the influence of the antenna on the
measurement error is minimized;
GA8112 antenna unit has high gain and directional pattern beam width to ensure the
low-elevation signal reception effect, and it can still search for stars in some occasions
with severe obstruction.
| Antenna Specification | ||||
|
Frequency Range |
GPS L1 BDS B1 GLONASS G1 GALILEO E1/E2 |
GPS L2/L5 BDS B2/B3 GLONASS G2 GALILEO E5a/E5b |
Bluetooth |
|
| Peak Gain | ≥6dBi | ≥5dBi | 1.5dBi | |
| Polarization | RHCP | Linear | ||
| Impedance | 50Ω | 50Ω | ||
| Azimuth Coverage | 360° | 360° | ||
| Output VSWR | ≤1.5 | ≤2 | ||
| Phase Center Error | ±2mm | / | ||
| LNA Specification | ||||
| Gain | 40±2dB |
/ |
||
| Noise Figure | ≤2.0dB | |||
| Output VSWR | ≤2 | |||
| Operation Voltage | 3~5.5V | |||
| Operation Current | ≤50mA | |||
| Mechanical Specification | ||||
| Connector | MMCX-C-JW1.5 | MMCX-C-JW1.5 | ||
| Dimension | φ111x25 | |||
| Weight | ≤190g | |||
| Environment Specification | ||||
| Operating Temperature | -40℃～+85℃ | |||
| Storage Temperature | -55℃～+85℃ | |||
| Humidity | 95 ℃ non-condesing | |||
