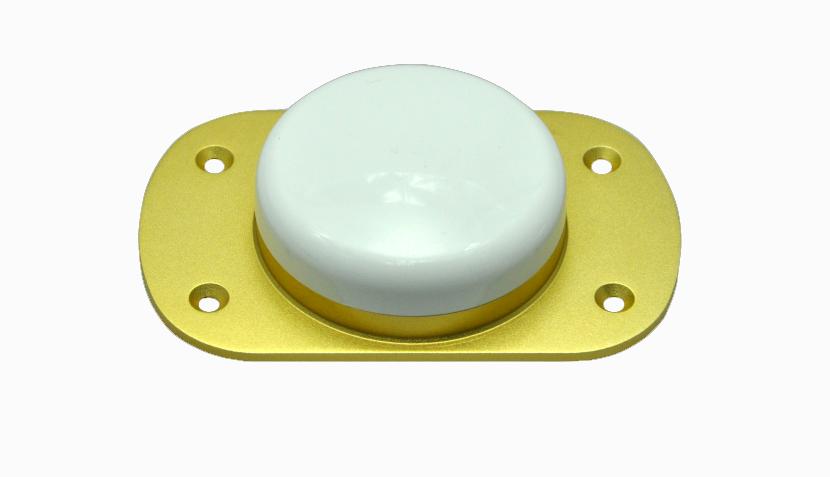

GAC1000 aviation antenna is designed to support high accuracy aerial, land and marine applications in one compact design with high-performance and light weight.This antenna is an aviation type of design, which has 4 holes bulkhead mounting allows the antenna to be used inthe most rugged of environments. This is an ideal design for customers building machine control systems. The antenna can be mounted flush with the vehicle surface or on the top of a pole mount. The TNC connector is located on the underside of the unit ensuring the attached cable is also protected from the environment.
| Antenna Specification | |
|
Frequency Range |
GPS L1/L2/L5, GLONASS L1/L2/L3, BDS B1/B2/B3, Galileo E1/E5a/E5b/E6, L-Band |
| Impedance | 50ohm |
| Polarization | RHCP |
| Axial Ratio | ≤3dB |
| Azimuth Coverage | 360° |
| Output VSWR | ≤2.0 |
| Peak Gain | 3dBi |
| Phase Center Error | ±2mm |
| LNA Specification | |
| LNA Gain | 36±2dB |
| Noise Figure | ≤2dB |
| Output VSWR | ≤2.0 |
| Operation Voltage | 3.3~12VDC |
| Operation Current | ≤45mA |
| Group Delay | ≤5ns |
| Mechanical Specification | |
| Dimension | 115*71.8*41.5mm |
| Connector | TNC Female |
| Weight | 170g |
| Environment Specification | |
| Storage Temp | -55℃～+85℃ |
| Operating Temp | -40℃～+80℃ |
| Humidity |
95% No-condensing |
