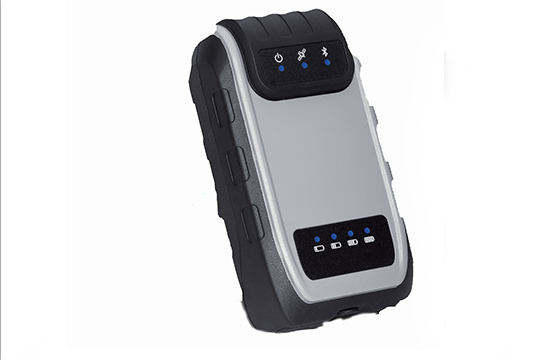

MG-W is a wearable high precision positioning product with optional sub meter and centimeter level accuracy. Its stylish industrial design is light and strong and can respond to a variety of harsh field operating conditions. The battery is replaceable, which satisfies the demand for a long work day. The MG-W is compatible with iOS, Android, Windows Mobile operating systems, Bluetooth, Serial COM Ports, various types of tablet PC computers and smart phones. Intelligent terminals allow the MG to provide high-precision positioning data. It can be used in an variety of applications such as electric power inspection, forestry, surveying, pipeline inspection, geological surveying, terriorial law enforcement and other fields which require a high level of precision.
| Model | MG-WU1 | MG-WU2 | MG-WU3 | MG-WT1 | MG-WT2 | MG-WT3 | MG-WH1 | |
|
GNSS Performance |
GPS | L1 | L1 | L1 | L1 | L1, L2 | L1, L2, L5 | L1, L2, L5 |
| GLONASS |
Alternative |
Alternative |
Alternative |
G1 | G1, G2 | G1, G2, G3 | G1, G2 | |
| BD | B1 | - | B1, B2 | B1, B2, B3 | ||||
| GALILEO | - | - | - | E1 | E1 | E1, E5 | E1, E5 | |
| Channels | 72 | 72 | 72 | 220 | 220 | 220 | 394 | |
| Time to First Fix | <29s | <29s | <29s | <45s | <45s | <45s | <60s | |
| Maximum update rate | <=5Hz | <=5Hz | <=5Hz | <=20Hz | <=20Hz | <=20Hz | <=20Hz | |
|
Accuracy (Internal Accord accuracy) |
Autonomous | 2.5m | 2.5m | 2.5m | 1.2m | 1.2m | 1.2m | 1.2m |
| SBAS | 2m | 2m | 2m | 0.5m | 0.5m | 0.5m | 0.5m | |
| DGPS | 1.5m | 1.5m | 1.5m | 0.25m | 0.25m | 0.25m | 0.3m | |
| RTK | 2.5cm+1ppm | - | - | 0.8cm+1ppm | 0.8cm+1ppm | 0.8cm+1ppm | 0.8cm+1ppm | |
|
Atlas |
- |
- |
- |
- |
- |
- |
H10 (4cm) H30 (15cm) H100 (50cm) | |
|
Communications |
Bluetooth | Bluetooth, Android / Windows Mobile / iOS | ||||||
| Serial port | √ | |||||||
|
Overview |
Dimension | 137mm x 72mm x 50.4mm | ||||||
| Weight | <350g | |||||||
|
Environment Specification |
Operating temperature | ‐20℃ ~ +60℃ | ||||||
| Storage temperature | ‐30℃ ~ +70℃ | |||||||
| Sand, dust&water | IP65 | |||||||
| Drop | 1.5m | |||||||
|
Power |
Detachable battery | 3400mAh, 7.2V | ||||||
| Working time | >=24h | >=24H | >=24H | >=12H | >=12H | >=12H | >=8H | |
| Charging time | 2.5h, via cable | |||||||
|
Accessories |
Standard | Battery, Power Adapter, Fischer to DC IN cable, Arm band | ||||||
| Optional | Battery, DB9 to Fischer cable, Fisher to TNC cable, TNC to TNC cable, Docking Station | |||||||
| Supported Software | Supported Software | HyperGIS（Android）, SurvCE（Windows Mobile）, FieldGenius（Windows Mobile）, SuperSurv(Windows Mobile/Android) | ||||||
