| Product Specification | |||

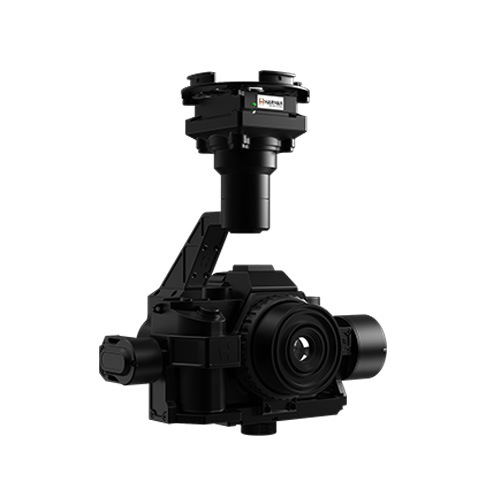

| Product Name | 4K camera system module | ||
| Product Size | 189*216*260mm | ||
| Picture size | 4240*2832 | ||
| Pixel | 12.2 million | ||
| Sensitivity range | ISO100-ISO409600 | ||
| Shutter speed range | 30s-1/8000s | ||
| Focus point | 169 point intelligent AF point | ||
| Support for up to 4K records | 4K、30P（3840*2160） | ||
| RAW Support | 14bit | ||
| 4K Zeiss lens | 35mm f2.8 Large wide angle lens | ||
| Image size | 3:2 full frame, 4:3 full frame, 16:9 full frame | ||
| Record size | XAVC S 4K:3840 x 2160 XAVCSHD：1920x1080(60p/50Mbps,30p/50Mbps,120p/100Mbps) | ||
| Sensor | CMOS 35MM full frame | ||
| Communication Interface | CAN/S.BUS | ||
