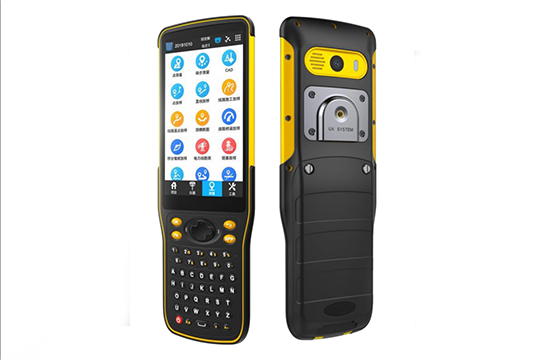

UC10 is a new generation of Android Data Controller. It adopts the industry's top configuration and adds more convenient all-digital full-letk physical buttons. The 5-inch sun screen is visible under strong light, with higher definition and support for stylus mode, 13 million. Stacked autofocus camera, the camera is more clear, high-definition big speakers, clear and loud sound, the system supports APP permission management, bringing you a better experience. 5200mAh large capacity detachable battery, energy-saving technology support, long standby, ultra-thin IP67 three-proof design, support low temperature working environment, the bracket adopts a new magnetic design, can quickly match the handbook, let you work in different working environments It is more convenient to use.
| System | |
| OS | Android 9.0 |
| Processor | 8 Core 2.0GHz |
| Extension | 128 GB Max |
| SIM Card | 2 x Nano SIM card |
| RAM | 3 GB |
| GNSS | |
| Satellite | GPS/BDS/GLONASS |
| Measurement Rate | 1Hz |
| Positioning Accuracy | 2.5 m（Standalone）2.0m（SBAS） |
| Data Communication | |
| Bluetooth | BT4.1 + Bluetooth LE |
| WIFI | 802.11 a/b/g/n/ac |
| 4G | 4G Full Netcom |
| Interface | USB Type C |
| OTG | Support |
| Physical | |
| Size | 225x78x14.5mm |
| Weight | 350g |
| Battery | |
| Power | 3.8V，5200mAh |
| Standby Time | Over than 240hrs |
| Operation Time | Over than 12hrs |
| Charging | PE quick charge 18W |
| Display and Keypad | |
| Size | 5 inch AR screen |
| Resolution | 720 x 1280 |
| Brightness | 400 nits |
| Keypad | All physical keys |
| Environment | |
| Operation Temperature | 20°C ~ 55°C |
| Storage Temperature | -40°C ~ 70°C |
| Ingress Protection | IP67 |
| Anti-drop | 1.5m |
| Sensor | |
| Range sensor | Support |
| Light sensor | Support |
| Gravity acceleration sensor | Support |
| Electronic compass | Support |
| gyroscope | Support |
