| Type | Details | Standard Configuration | Optional | ||||

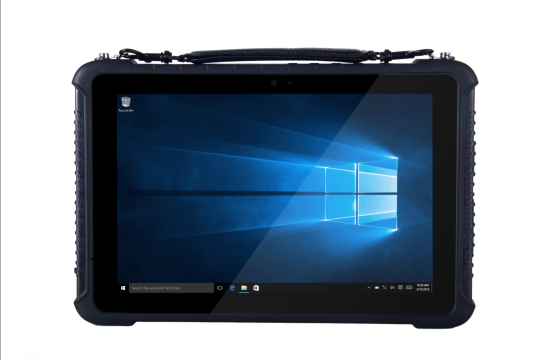

| Product Form | Type | Rugged Tablet | NA | ||||
| Dimension | 280*187*22mm | NA | |||||
| Weight |
Device unit: 1014g Unit with giftbox and standard accessories:1990g Docking：290g，5000mAh battery：250g |
NA | |||||
| Device Color | Black（Front and Rear Panel: Black，Decorate Board:Black） | NA | |||||
| LCD | Screen Size | 10.1 inch 16:10 | NA | ||||
| Resolution | 1200×1920 | NA | |||||
| Brightness | 300 cd/m2 | Optional SLR Sunlight visible film | |||||
| TP | Touch Panel | 10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch | Optional SLR Sunlight visible film | ||||
| Camera | Front | Front:2.0MP with chargeing indicator light | NA | ||||
| Rear | Rear: 8.0MP USB Camera | NA | |||||
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speaker x 1 | NA | ||||
| Mic | Sensitivity:-42db, Output resistance:2.2kΩ | NA | |||||
| Battery | Type | Lithium-ion polymer battery , pluggable, dimension: 121.8*92.3*9.5mm | Standard:1pcs，optional: 2pcs | ||||
| Capacity | 7.4V/5000mAh | NA | |||||
| Endurance | 6hrs(default 50% volumn，default200nit，play 1080P HD video) | NA | |||||
| System Hardware Configuration | |||||||
| Type | Details | Description | Optional | ||||
| CPU | Type | Intel® Skylake M3-6Y30 | kabylake Core™ m3-7Y30 /8200Y | ||||
| Speed | 4M Cache, 2.60 GHz | NA | |||||
| GPU | Type | Intel® HD Graphics 515 | NA | ||||
| RAM | DDR3L | 4GB | 8GB | ||||
| SSD | NGFF SSD | 64GB | 128G | ||||
| G_sensor | Built-in | Gravity acceleration sensor | NA | ||||
| Network Connections | |||||||
| Type | Details | Description | Optional | ||||
| WIFI | WIFI Module | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Dual band WIFI | NA | ||||
| Bluetooth | Built-in | BT4.1 (BLE) class 1 Transmission Distance：10m | NA | ||||
| 3G | Built-in | FIBOCOM_H380-GL (M.2)Band: GSM/GPRS/EDGE Band(850&900&1800&1900 MHZ), WCDMA Band(850&900&1900&2100MHz)，HSDPA 21Mbps，HSUPA 5.76 Mbps | NA | ||||
| 4G | Built-in | NA |
ME936 LTE M.2 LTE: B1/B2/B3/B4/B5/B7/B8/B13/B17/B20 WCDMA/HSDPA/HSUPA/HSPA+ :850MHZ/900MHZ/1700 MHZ(AWS)/1900MHZ/2100MHZ GPRS/EDGE:850MHZ/900MHZ/1800MHZ/1900MHZ GPS/GLONASS:L1 Quectel European version EC25-E |
||||
| GPS | Built-in | U-blox NEO-7,Support:GLONASS,QZSS,GPS; Capture sensitivity:-160 dBm；Cool Start Time：<30 second，Hot start time：<28 second，Frequency：0.25 Hz … 10 MHz (configurable) |
Keyboard can be optioned with the GPS module, which is used to connect the GPS antenna to the vehicle. |
||||
| Data Collection | |||||||
| Type | Details | Description | Optional | ||||
| Fingerprint | Optional | NA | |||||
| NA | |||||||
| 1D Barcode scanner | Optional | NA | MOTO SE655E100R | ||||
| Optical Position:5mil | |||||||
| Scan speed: 50/s | |||||||
| Symbol System:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 | |||||||
| 2D Barcode Scanner | Optional | NA | Honeywell N3680 Hardware decoder | ||||
| Optical Position:5mil | |||||||
| Scan speed:50/s | |||||||
|
Symbol System:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
|||||||
| Interface Configuration | |||||||
| Type | Details | Descriptions | Optional | ||||
| TF Slot | Extensive External Memory | Support TF x1 max：128G | NA | ||||
| SIM Slot | SIM Slot | SIM x1 | NA | ||||
| Micr usb | USB2.0 | USB 2.0*1 | NA | ||||
| type A usb | USB3.0 | USB 3.0*1 | NA | ||||
| DC Jack | Power | DC 12V 4A ∮4.0mm Power connector x1 | NA | ||||
| Earphone Jack | Audio Output | ∮3.5mm Standard Earphone Jack x1 | NA | ||||
| HDMI Jack | Audio&Video Output | HDMI 1.4a Type C x1 | NA | ||||
| Extensive Slot | Pogo Pin | 12pin Pogo Pin x1 | NA | ||||
| DB9 PORT | UART Serial port | *1 (RS232) TTL Electrical Level | NA | ||||
| RJ45 PORT | Internet port | *1(10/100 Self-adaption) | NA | ||||
| Air outlet | Air outlet | NA |
*1( Build in small board for customer customized ) Motherboard reserved standard USB2.0 interface. TLU1HPO2H0709J-50( Tong Mao Plug) LU1HR04H0709K( Tong Mao Plug) |
||||
| Standard Accessories | |||||||
| Type | Details | Descriptions | Optional | ||||
| OTG Cable | OTG Cable | USB OTG to MICRO USB cable, length:45mm | NA | ||||
| USB Cable | USB Cable | USB to micro 5P L=1.2M 4 core aluminum foil shield cable | NA | ||||
| Power Adaptor | Standard | AC100V ~ 240V、50Hz/60Hz output DC 12V/4A USA Standard CE approval | UK Standard | ||||
| EU Standard | |||||||
| Software Configuration | |||||||
| Type | Details | Descriptions | Optional | ||||
| Operation System | OS version | windows 10 Home 64bit Default language：English | windows 10 Home 64bit | ||||
| Windows 10 Pro 64bit | |||||||
| Windows 10 IOT 64bit | |||||||
| Product Certificate | |||||||
| Type | Details | Descriptions | Optional | ||||
| Certificate System | IP65 |
IP65 Report：Water Resistance：IP-X5，Dust Resistance：P-6X Report ID no.：SET2015-07677 a.Inner Nozzle Diameter：6.3mm； b. Water Speed：12.5±0.625L/min； c. Water Pressure：Adjust according to water volumn； d.Central part of water volumn ：A round with a diameter of about 40mm at the distance from the nozzle 2.5m. e.Spray time in surface of panele: About 1 min/Square meter；f.Test time：at least 3min； g.Distance between nozzle and panel surface：2.5～3m。 After test，there is no water leakage in sample. |
NA | ||||
| CE-NB | YES | NA | |||||
| MIL-STD-810G | YES | NA | |||||
| CCC | YES | NA | |||||
| Battery | UN3803，MSDS,IEC62133,Aviation, Ocean shipping reports | NA | |||||
| Reliability | |||||||
| Type | Details | Descriptions | Optional | ||||
| Product Reliability | Drop Height | 80cm composite wood floors, in operation status | |||||
| Operate Temperature | ‘-10 °C to 50 °C | ||||||
| Store Temperature | ’-30 °C to 70 °C | ||||||
| Humidity | Humidity: 95% Non-Condensing | ||||||
|
Product feature： 1.Support Windows 10； 2.Support USB2.0 type A connector； 3.Support Battery Single Charger Docking; 4.Support GPS navigation; 5.Support 1D/2D barcode scanner； 6.Support Finger Identification； 7.Rugged IP65 protection level； 8.Support 5000mAh pluggable battery； 9.Support UART port, RJ45 port and customized port; 10.Support Wrist Strap and back jacket； |
|||||||
