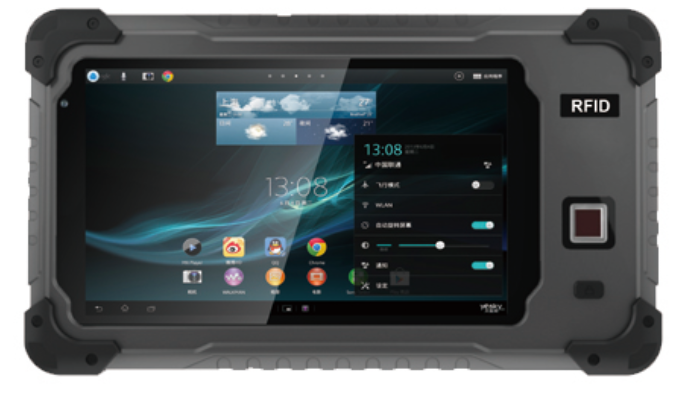

| Specification | GT070-Basic | |||||||
| GT070B01 | ||||||||
| Hardware | CPU | Cortex A7 1.3G Hz X4 QUDE-core 28nm | Standard | |||||
| GPU | Mali 450 MP4 | Standard | ||||||
| RAM | 1G LPDDRII | Standard | ||||||
| Storage | RAM&ROM | 1GB RAM+16GB ROM | Standard | |||||
| Storage(Optional) | Micro SD card ( T-FLASH card), max 64GB | Standard | ||||||
| Appearance | Size(mm) | 237x137x29mm | Standard | |||||
| Color & Material | Sunyellow+black; ABS+PC; TPU | Product No.：GT070LB01Y | ||||||
| Armygreen+black; ABS+PC; TPU | Product No.：GT070LB01G | |||||||
| Grey+black; ABS+PC; TPU | Product No.：GT070LB01B | |||||||
| Weight(g) | 760g | |||||||
| communications & networking | Call | GSM/WCDMA/TD-SCDMA | Standard | |||||
| 2G/3G Band | WCDMA 850/1900/2100 & GSM850/900/1800/1900 | Standard | ||||||
| 3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),TD-SCDMA | Standard | ||||||
| EDGE | support | Standard | ||||||
| GPRS | support | Standard | ||||||
| WAP | support | Standard | ||||||
| WI-FI | 2.4GHz single stream 802.11 /b/g/n MAC/BB/RF support wifi AP | Standard | ||||||
| BT | BT v2.1+EDR/BT 3.0+HS compliance/ Bluetooth v4.0 Low Energy (LE) | Standard | ||||||
| Screen | Display | 7' inch IPS/AFFS; 1024*600 400 cd/m2 | Standard | |||||
| Touh Panel | 5 point touch capacitance screen/tempered glass/support glove touch,spray | Standard | ||||||
| Camera | Main Camera | 8.0MP (AF & electro-flash ) | Standard | |||||
| Sub Camera | 2.0MP | Standard | ||||||
| Sensor | Direction Sensor | Standard | ||||||
| Gravity sensor | Standard | |||||||
| Electronic compass （Magnetic Field Sensor） | Standard | |||||||
| Motion sensor | Standard | |||||||
| Rotation Vector Sensor | Standard | |||||||
| Gyroscope Sensor | Standard | |||||||
| Port & Battery | Battery | 9650 mAh | Standard | |||||
| SIM Card | 1.8/3.3V SIM card | Standard | ||||||
| TF Card | Micro SD card ( T-FLASH card) ;max 64GB | Standard | ||||||
| Headphone | 3.5mm | Standard | ||||||
| Charge | Micro USB 5pin /12pin self-locking type aviation plug | Standard | ||||||
| data interface | 12pin self-locking type aviation plug *1 RS232X2 GPIO X2 VCC X1 | Standard | ||||||
| USB | Micro USB 5pin； support OTG | Standard | ||||||
| External Function | navigation & position | GPS; support A-GPS/EPO（5-10M） | Standard | |||||
| GPS&BEIDOU /support SBAS/A-GPS/EPO（2.5M） | Optional | |||||||
| GPS&GLONASS/support SBAS/A-GPS/EPO（2.5M） | Optional | |||||||
| FM | Digital FM radio | Standard | ||||||
| NFC | support ISO14443A/B/ISO15693 reader / data transfer / card simulation | Optional | ||||||
| Barcode | ME5110/EM3096/2D Barcode scanner | Optional | ||||||
| UHF RFID | UHF RFID lowpower (1.5M-2M,902-928M(Option 865-868M),18000-6C,need 2db Antenna | Optional | ||||||
| LF RFID | LF RFID ID (125k) support EM4100,4001,TK4100，EM4305 | Optional | ||||||
| Fingerprint | FPC1020 ,192 x 192 pixel,508 dpi,8 bit | Optional | ||||||
| ZigBee | DRF1607H module; MESH ：agreement with PA | Optional | ||||||
| Industrial Design | Shake-proof | 1-19Hz/1.0mm ; 19-200Hz/1.0g | Standard | |||||
| Dropproof | >1.2m,MIL-STD-810G/Method516.6/Procedure IV | Standard | ||||||
| Waterproof | class 6 （IEC 60529） | Standard | ||||||
| Dustproof | class 5 （IEC 60529） | Standard | ||||||
| Reliability | MTBF>50000h；MTTR<0.5h | Standard | ||||||
| Operating temperature | -20°C TO 65°C | Standard | ||||||
| Storage Temperature | -40°C TO 80°C | Standard | ||||||
| RH | ’ 5% to 95% | Standard | ||||||
| Operating Altitude | Max：4,500 m（15,000 feet） | Standard | ||||||
| Certification | CCC/CE/FCC/ROHS | support | ||||||
| IP56 | support | |||||||
| Video | 1080P ，H.264, MPEG4, H.263 Support File Format: RM, RMVB, AVI, MPEG4, FlV | |||||||
| Audio | ||||||||
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified , Chinese,Chinese Traditional,etc | |||||||
| IOS | Andriod OS 4.4.2 | |||||||
| The test of dropping steel ball and waterproof,dust-proof protection was created under controlled laboratory conditions to ensure the accuracy of the results,which comply with MIL-STD-810G/Method516.6/Procedure IV military standards and IP56 IEC 60529 standard.In the daily life,the permance of protection might be reduced due to the abrasion,but anti-splash,waterproof,dustproof will last forever.Fall protection does not mean 100% no demage in any condition.Please do not charge the tablet in wet condition.Never do the dropping ball,waterproof etc,.test under the uncontrolled laboratory conditions.The damage from dunked,drop shock will be out of our warranty. | ||||||||
